Technical Specifications| 1x TRIPLE-R 1250 | BOOST MODE | LOW OUTPUT/ E-MARK MODE |
|---|

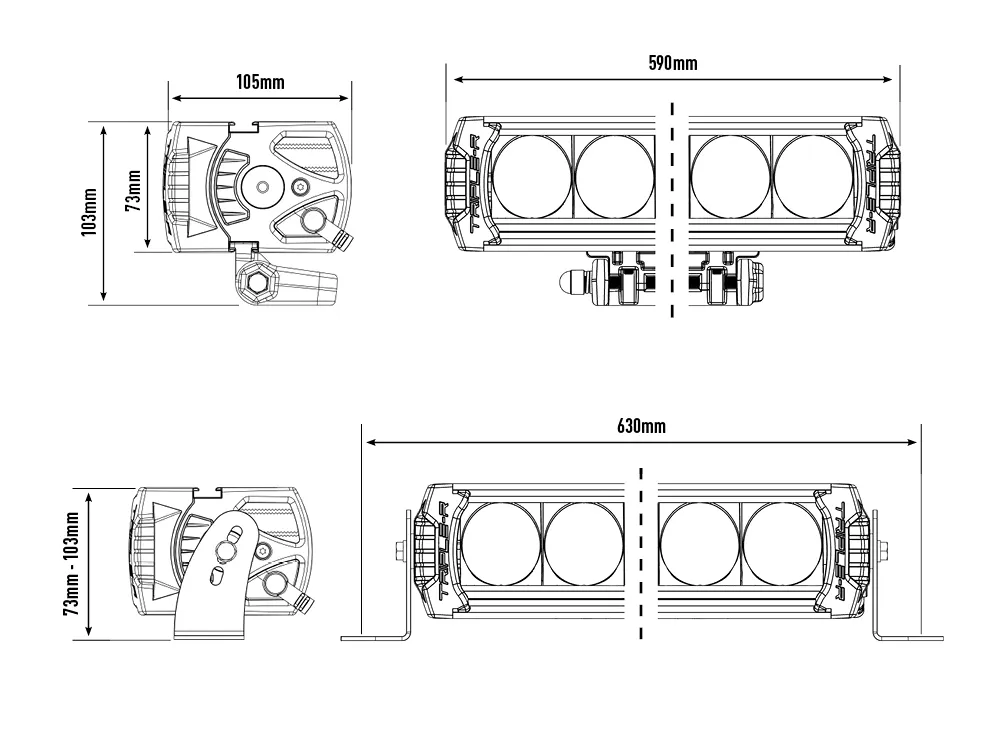

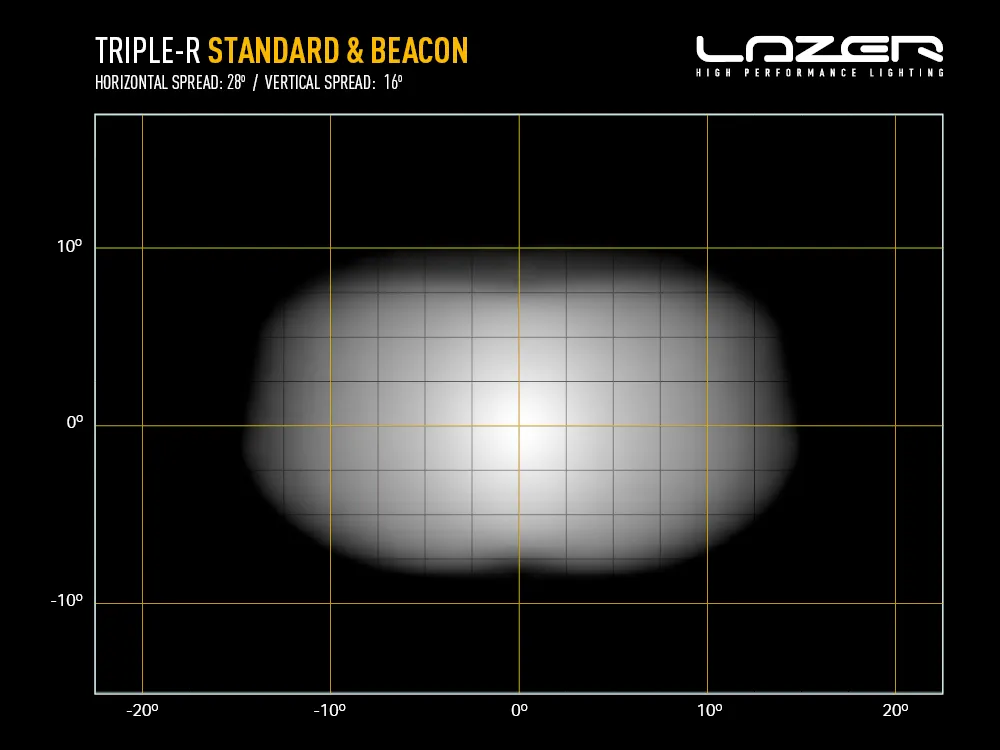

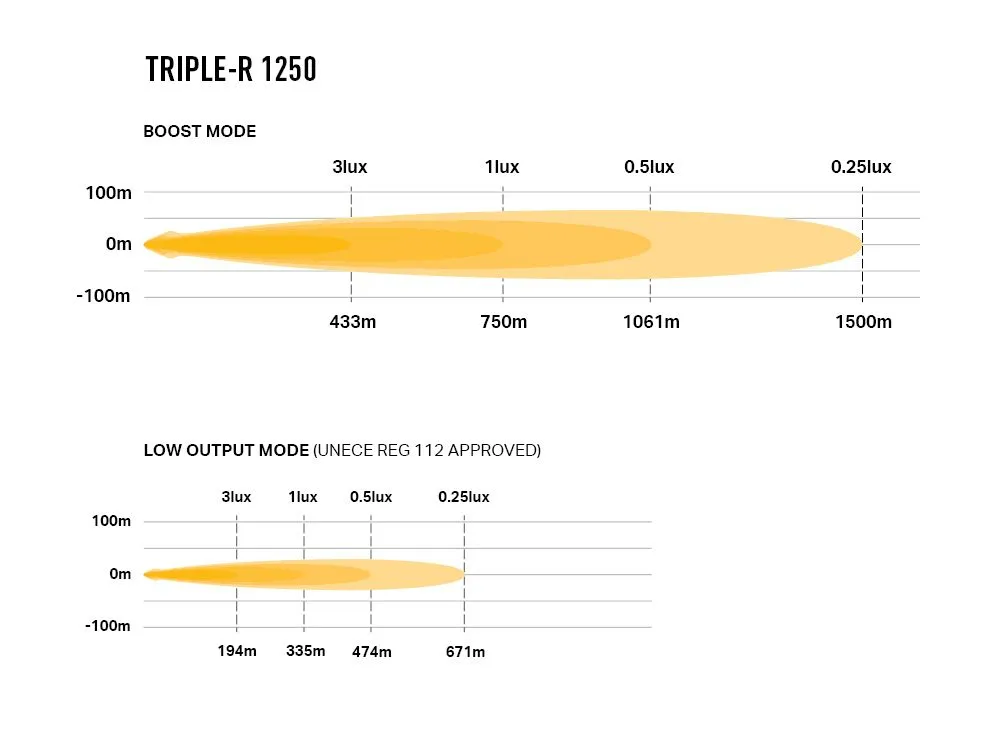

| | | | Voltage Range (DC) | 10-32V | | LED Life | 50,000 hours | | Weight | 2.4 kg | | | | HIGH BEAM FUNCTION | | Total Luminous Flux | 13,860 Lm | 2,772 Lm | | Total Driver 'FOV' Flux † | 8,358 Lm | 1,672 Lm | | Colour Temperature | 5000K | | Power Consumption | 125 Watts | 25 Watts | | Peak Current Draw | 10 Amps | 2 Amps | | Current Draw (14.4V) | 8.7 Amps | 1.7 Amp | | Connector | 6-Pin Superseal (+20cm Cable) | | | | DIMENSIONS | | Width | 590 mm | | Depth | 105 mm | | Height | 73 mm | | | | CERTIFICATION | | IP Rating # | IP68 | | High Beam (E9 approval) | ECE R149 - Ref: 20 (in Low Output Mode only) | | Position Light (white only) | ECE R148 | | EMC Certification | ECE R10 | | Salt Spray Test | ISO 9227 | | Dump Load Protection | ISO 7637-2 | | | | PHOTOMETRIC DATA | | Horizontal / Vertical Beam Angle | 28° / 16° | | 0.25 lx Line | 1500m | 671m | | 0.5 lx Line | 1061m | 474m | | 1 lx Line | 750m | 335m | | 3 lx Line | 433m | 194m | | |
† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here. # - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out. |

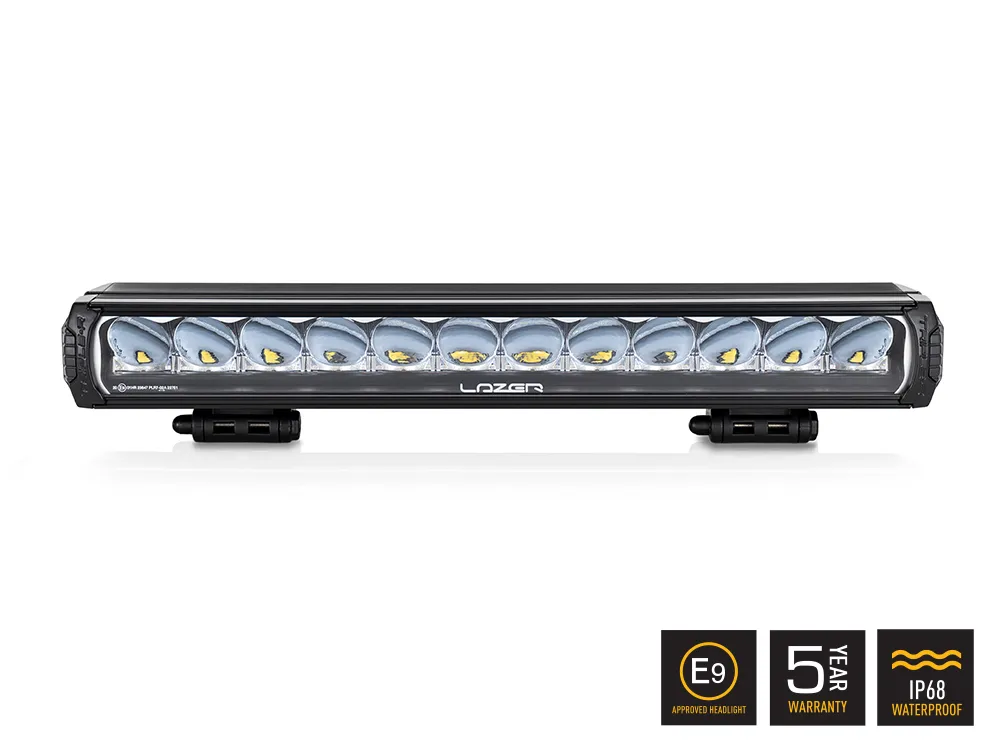

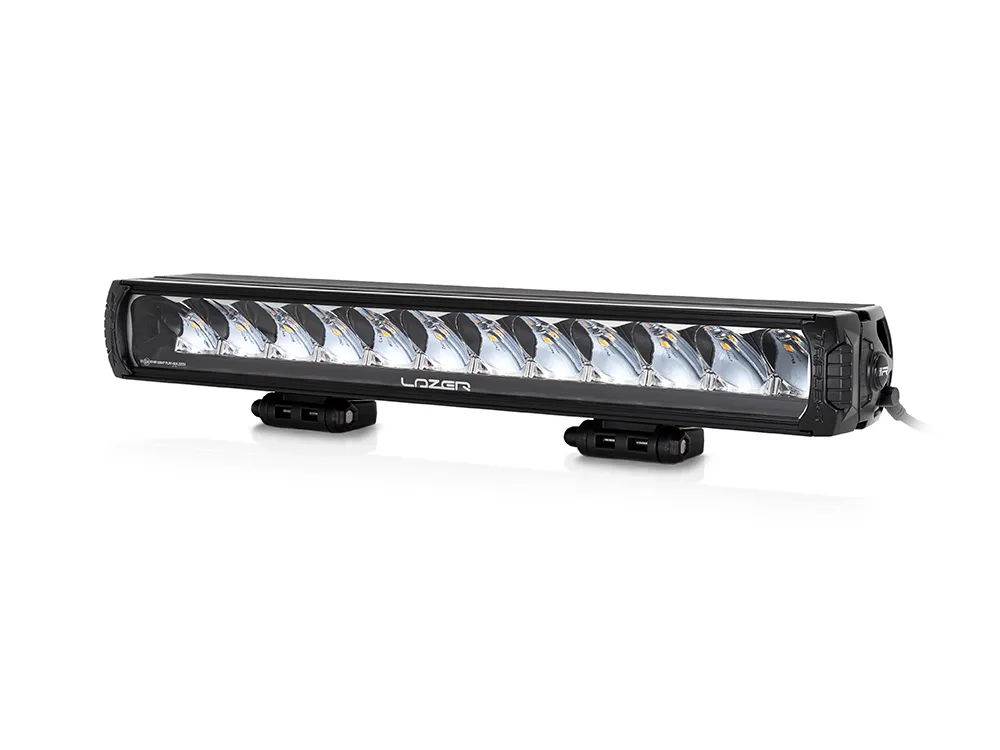

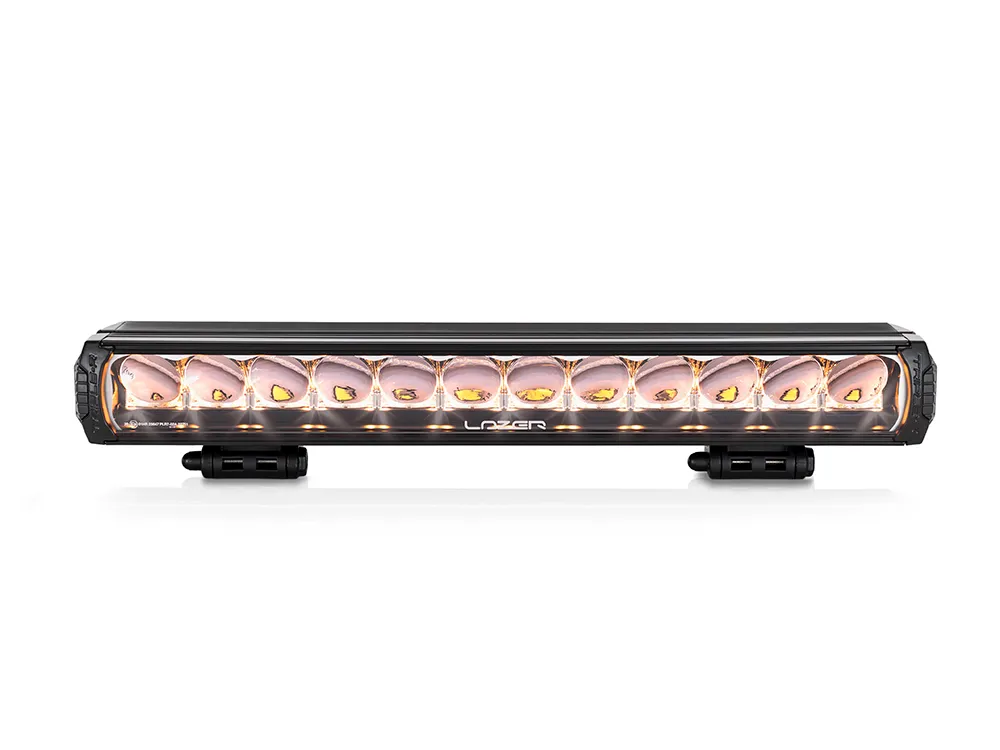

The Triple-R range provides high-performance auxiliary LED lighting developed initially for the uncompromising requirements of the professional motorsport world. Through a real focus on optical efficiency and long-range visibility, the LED light bars now set the benchmark across a broad range of vehicle types and applications. The appeal of the high-beam performance of each light is furthered by integrated white/amber position light function.
Each unit comprises high-efficiency 11W LEDs, operating at a 5000K colour temperature carefully selected for visual clarity, sharpness, and comfort (especially when used for prolonged periods of time). The optical system delivers a pleasant balance of focused long-range beam with good left/right spread of light, and a slightly increased vertical spread, ensuring the suitability of the lamps to both high and low mounting positions on your vehicle.

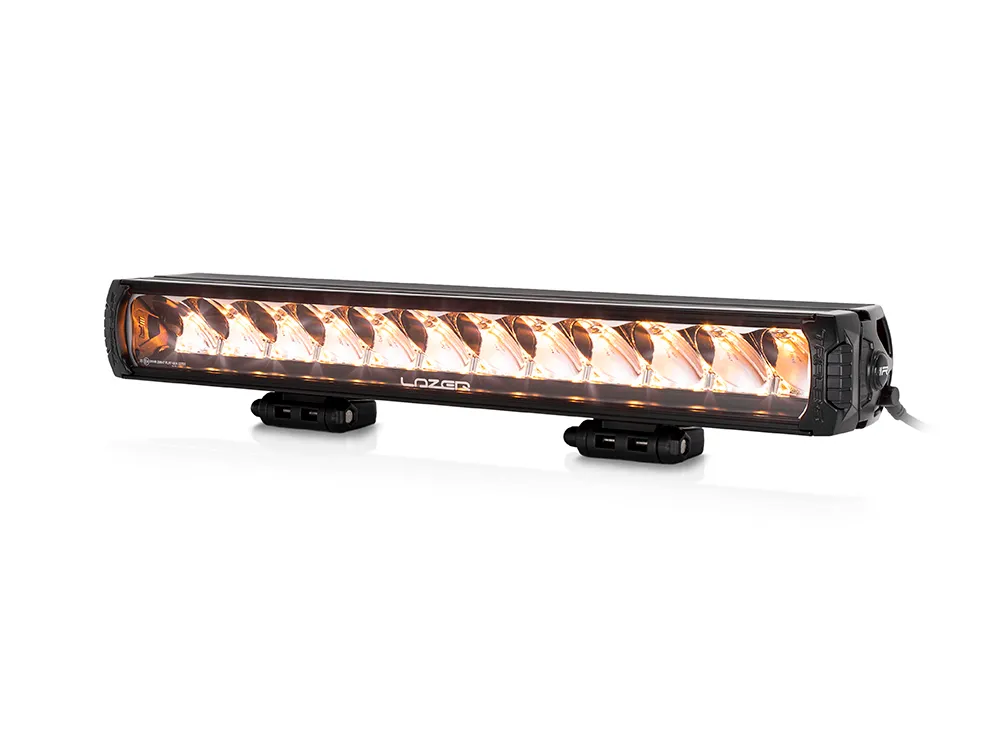

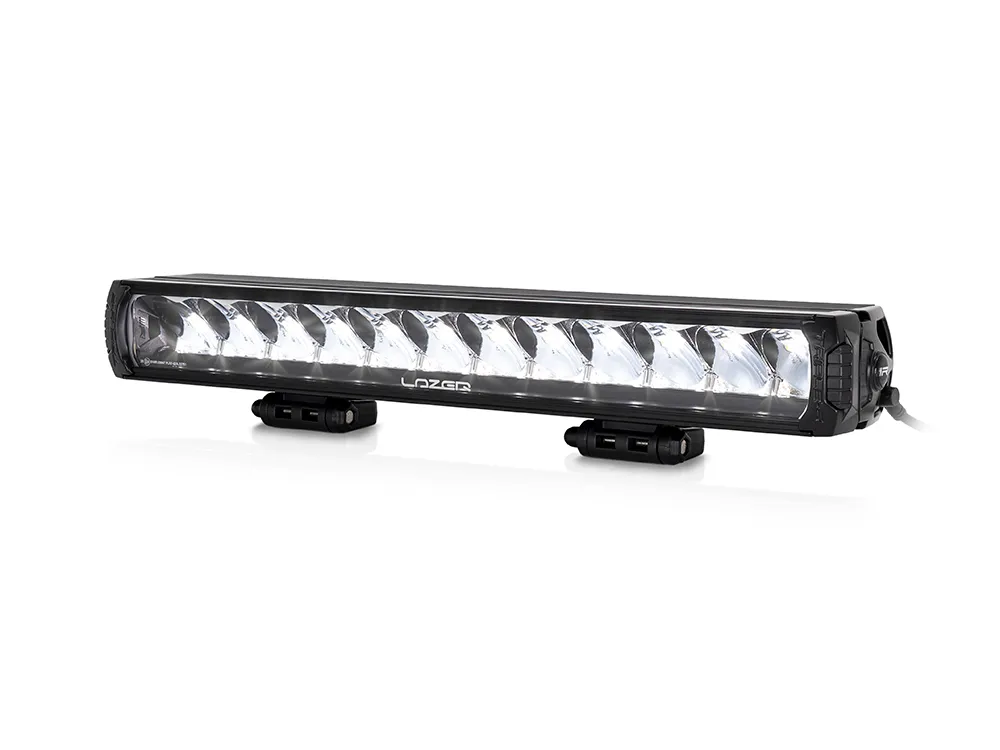

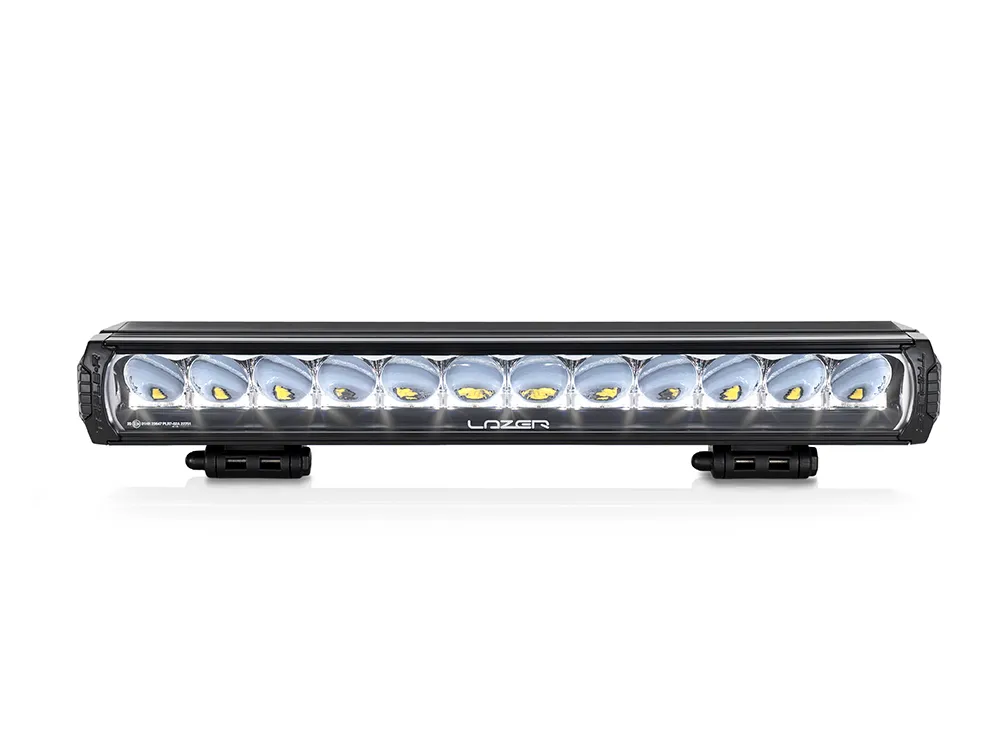

Incorporating integrated white and/or amber position light, this function is able to be selected at the point of installation (or switchable if wired accordingly), with the white position light fully UNECE approved to Regulation 148 for on-road use. It can also be configured with a dynamic start-up/welcome mode; either a gradual brightening, or smooth transition between white and amber (or vice versa), when the vehicle is started or the side lights are activated.
The lamp is also UNECE approved to Regulation 149 as a high beam driving light, through adoption of Lazer’s dual output Boost technology; controlled via quickly flashing the light off/on, the light can be quickly dimmed for avoiding glare when passing road-signs for example (flash-to-dim), or at any time programmed to always work in the high or low output modes, with the low output mode complying to the UNECE Reg149 as an on-road high beam driving light.
Like all Lazer high performance lights, the Triple-R range is designed, engineered, and built in-house, in our UK premises, you can be fully assured of exceptional high-end product design, coupled with superior levels of illumination, all backed up by our comprehensive 5-year warranty.
