Lazer Triple R750 Elite

Technical Specifications
1x TRIPLE-R 750 ELITE

BOOST

MODE

LOW OUTPUT/

E-MARK MODE


Voltage Range (DC)10-32V
LED Life50,000 hours
Weight1 kg

HIGH BEAM FUNCTION
Total Luminous Flux5,068 Lm1,267 Lm
Total Driver 'FOV' Flux †3,340 Lm835 Lm
Colour Temperature5000K
Power Consumption56 Watts8.88 Watts
Peak Current Draw5.2 Amps0.8 Amps
Current Draw (14.4V)3.8 Amps0.6 Amps
Connector2-Pin Superseal (+25cm Cable)

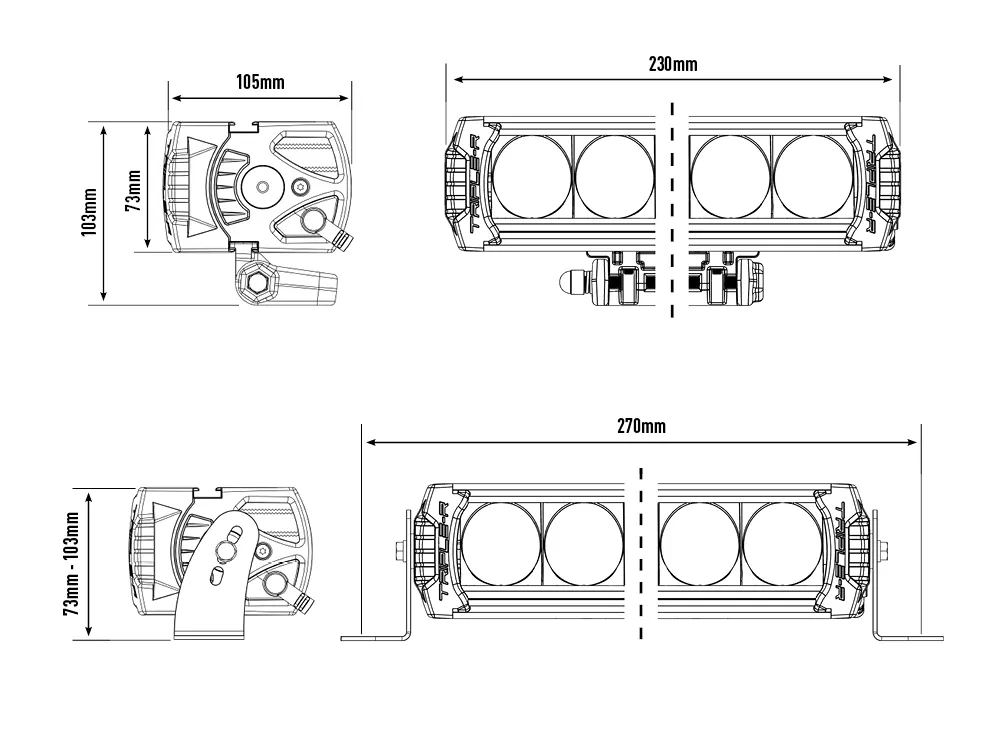

DIMENSIONS
Width230mm
Depth105mm
Height73mm

CERTIFICATION
IP Rating #IP68
High Beam (E9 approval)ECE R112 - Ref: 12.5 (in Low Output Mode only)
EMC CertificationECE R10
Salt Spray TestISO 9227
Dump Load ProtectionISO 7637-2

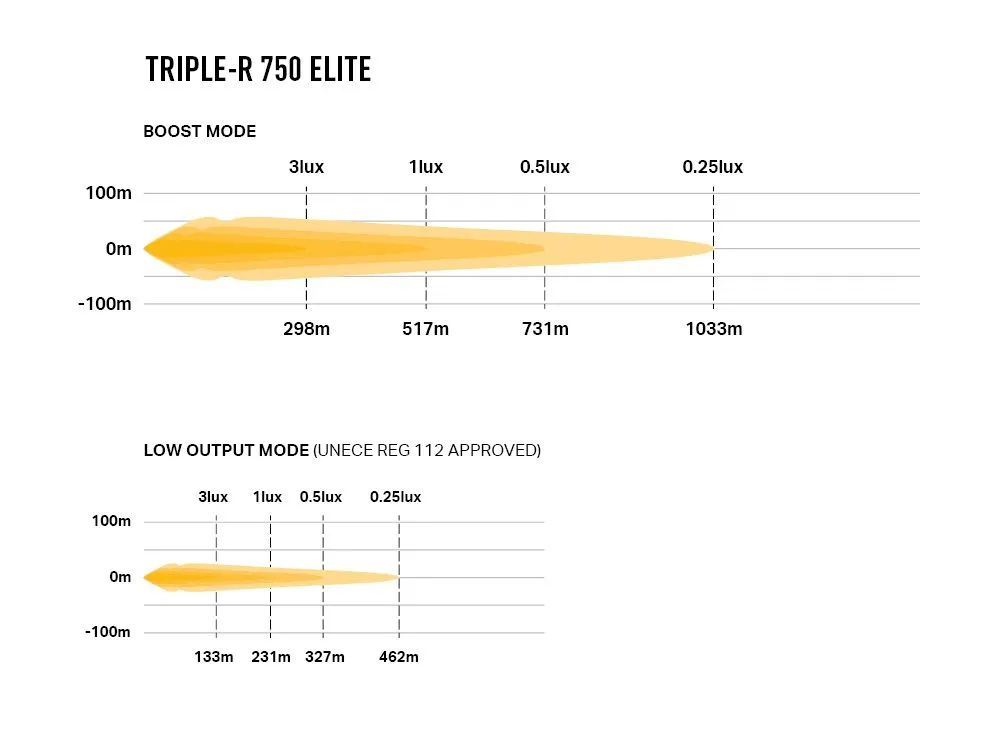

PHOTOMETRIC DATA

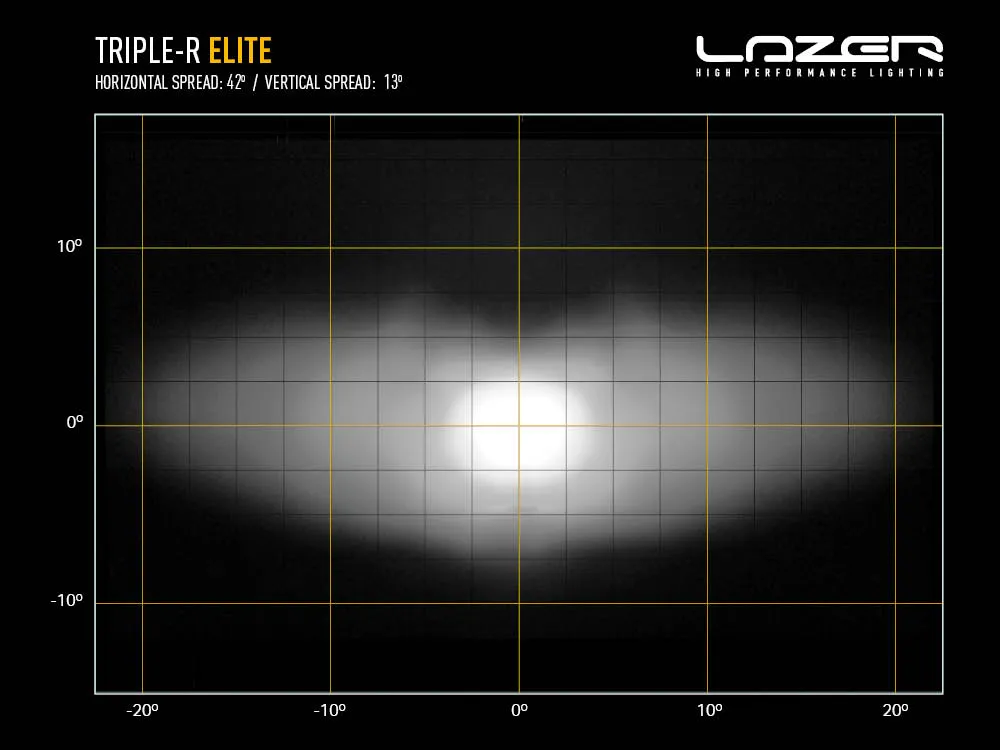

Horizontal / Vertical Beam Angle42° / 13°
0.25 Lux1033m462m
0.5 Lux731m327m
1 Lux517m 231m
3 Lux298m133m




† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.


The latest generation of the Triple-R range, delivers exceptional, long-range auxiliary LED automotive lighting. Initially developed for the uncompromising requirements of professional track and rally motorsport, the range has evolved to become a firm favourite across the passenger car, 4x4, light commercial, and heavy truck market, both on and off-road. Recent additions to the Triple-R range boast innovative features and functionality, including patent-pending technology never seen before in an auxiliary LED light bar.

Incorporating an arrangement of high efficiency, premium ‘bin’ LEDs at a carefully selected 5000K colour temperature, with 80CRI for high levels of sharpness and clarity, the Triple-R Elite products represent our most powerful driving lights. The electronics and optic design work in combination to deliver incredible distance illumination, yet still with enviable left/right spread. The comparatively low up/down spread of light emitted from the Elite lights ensures their suitability when roof mounting, avoiding reflective glare off the vehicle bonnet.

Standard level products feature integrated (optional) white and/or amber position light function for added styling and safety benefits. Alongside the premium design of the lights themselves, you can be sure your Triple-R product will impress even before the sun goes down! High efficiency 11W LEDs deliver impressive distance illumination albeit with not quite the same left/right visibility that you otherwise find with the equivalent Elite level products. A slightly taller up/down spread does however ensure suitability when mounting high on a vehicle such as a truck cab or roof of a van or other light commercial vehicle.

From Q3'25*, the lamp is UNECE approved to Regulation 149 as a high beam driving light, through adoption of Lazer’s dual output E-Boost technology; controlled via quickly flashing the light off/on, the light can be quickly dimmed for avoiding glare when passing road-signs for example (flash-to-dim), or at any time programmed to always work in the high or low output modes, with the low output mode complying to the UNECE Reg149 as an on-road high beam driving light.

Available in a variety of sizes from the 230mm (9”) Triple-R 750 to the 1305mm (51”) Triple-R 28 Elite, all Triple-R products up to the 590mm (23”) Triple-R 1250, benefit for approval to UNECE Regulation 112 as a high beam driving light. In many cases certification is only achieved using dual-output E-Boost technology, allowing the lamp to be used in both E-Boost or E-Mark Compliant mode depending on country-specific regulations and whether the light(s) are being used on or off-road.

Like all Lazer high performance lights, the Triple-R range is designed, engineered, and built in-house, in our UK premises, you can be fully assured of exceptional high-end product design, coupled with superior levels of illumination, all backed up by our comprehensive 5-year warranty.
