Based on: 1x RP Spot.
| Voltage Range (DC) | 10-32V |
| LED Life | 50,000 hrs |
| Weight | 1.1 kg |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 8940 Lm |
| Total Driver 'FOV' Flux † | 6079 Lm |
| Colour Temperature | 5000k |
| Number of High Output LEDs | 4 |
| Power Consumption | 80 W |
| Current Draw (at 14.4V) | 5.6 A |

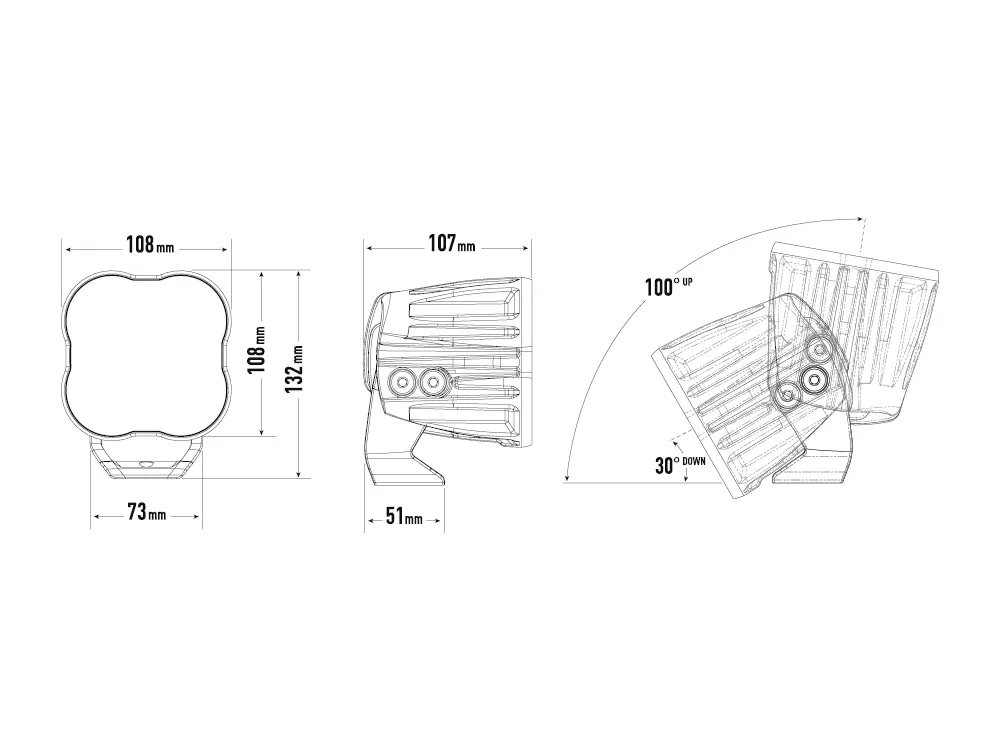

| DIMENTIONS | |
| Width | 107mm |
| Depth | 108mm |
| Height | 107mm |
| PHOTOMETRIC DATA | |
| Horiz Beam Angle | 20° |
| 0.25 lx Line | 785m |
| 0.5 lx Line | 555m |
| 1 lx Line | 392m |
| 3 lx Line | 227m |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down.

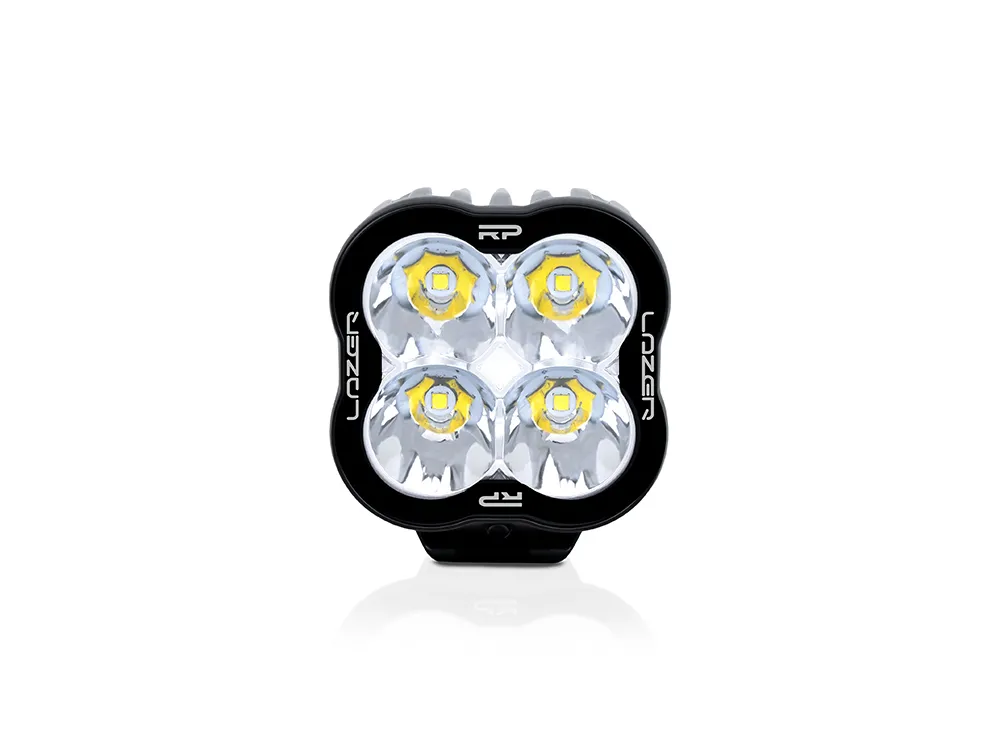

The RP Spot is an ‘off-road’ LED light built for performance and durability. Boasting 4x premium-bin 20W LEDs, the lamp produces 8,940 raw lumens which combine with the ultra-reflective, vacuum-metallised ‘boost’ optics specially designed and engineered to deliver light over an impressive distance (1 lux @ 392m), but still with 20 degrees left/right spread of light.
To compliment and enhance the impressive light output a comprehensive range of clip-on lens covers are available, including yellow and diffuser lenses. A black ‘Lazer’ branded lens cover is included with each light.
Like all Lazer Lamps' products the RP Spot has been designed, engineered, and manufactured in-house, in the UK. The product is built to withstand harsh environments backed up by our comprehensive 5year warranty. Design features including: electronic thermal management, ‘unbreakable’ polycarbonate lens with hardcoat varnish, and a CAE optimised heatsink, mean this is a product to be trusted to deliver for many years.
