Lazer Utility 80 HD

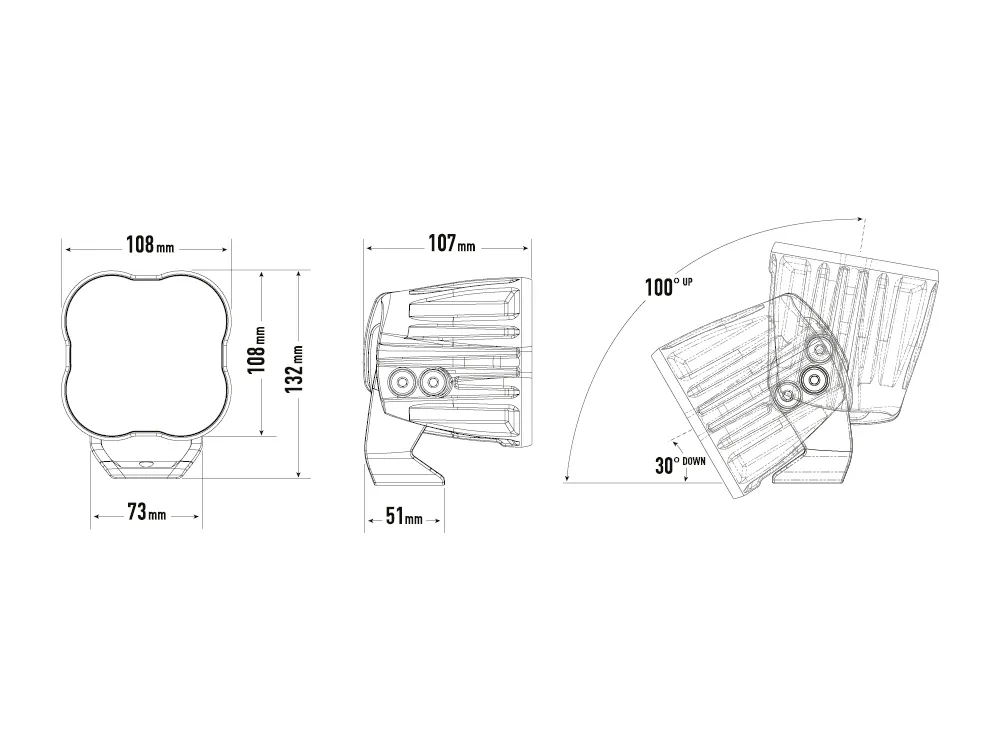

UT80G3-RPSeries - Dimension Diagram - mm (Web).webp

Lazer Utility 80 HD

1x Utility-80 HD LED Work Light

Voltage Range (DC)
10-32V
LED Life
50,000 hours
Weight
1.1 kg
HIGH BEAM FUNCTION

Total Luminous Flux8,940 Lm
Effective Lumens †7,420 Lm
Colour Temperature5000K
Power Consumption80 Watts
Current Draw (14.4V)5.6 Amps
Connector2-Pin/4-Pin Deutsch DT (+28cm Cable)

1x Utility-80 HD LED Work Light


Voltage-Range (DC)
10-32V
LED Life
50,000 hours
Weight
1.1 kg
HIGH BEAM FUNCTION

Total luminous Flux
8,940 Lm
Effective Lumens †
7,420 Lm
Colour Temperature
5000K
Power Consumption
80 Watts
Current Draw (14.4V)
5.6 Amps
Connector
2-Pin/4-Pin Deutsch DT (+28cm Cable)
DIMENSIONS

Width
108 mm
Depth
107 mm
Height
108 mm
CERTIFICATION

IP Rating #
IP68 / IP69K
EMC Certification
ECE R10
EMC Protection
CISPR-25 - Class 5 (Variable version currently Class 3)
Salt Spray Test
ISO 9227
Dump Load Protection
ISO 7637-2
Operation conditions

Operating Temperature
-40oC … +90oC
Vibration (BS EN 60068)
10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz
PHOTOMETRIC DATA

Horizontal / Vertical Beam Angle
80° / 80°
1 Lux
96m
5 Lux
43m
20 Lux
21m
50 Lux *
14m


† - Effective lumens takes into consideration the amount of light in a 'field-of-view' defined as an area +/- 90o left/right, and +/- 90o up/down.

* - 50 Lux represents HSE guidelines for effective illumination when working outdoors at night.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.


A new addition to the Utility Series product range in 2023, the Utility-80 HD (Heavy-Duty) builds on our reputation for high performance LED work light solutions. The product is specifically designed and engineered for the rigorous demands of industrial applications including: mining, construction, forestry, and agriculture.

Comprising 4x premium-bin 20W LEDs, the Utility-80 HD emits 8,940 raw lumens harnessed through the ultra-reflective, vacuum-metallised optics redesigned for this product to give even better distribution of light over a greater area. For customers looking for flexibility and easy control over the intensity of light, a version of the product with a variable brightness function is available, providing the machine operator the option to increase or decrease the lamps brightness at the touch of a button.

The colour of light for both variants of 80 HD is set at 5000K, carefully selected to improve safety through maximising definition of objects and hazards ahead, while reducing fatigue that can come from using products with a higher colour temperature.

Lighting performance aside, what truly sets the lamps apart is the robust construction and build quality. Like all Lazer products, the light benefits from an electronic thermal management system, CAE optimised heatsink, polycarbonate lens with hardcoat, and advanced electronic design. An upgraded die-cast mounting bracket, repositioned and concealed goretex breather membrane, plus re-engineered LED/optical arrangement only serves to increase the product’s robustness and suitability to the harshest environments. Testimony to the products build quality, the lamp comes with a 5 year functional warranty (5 Year Warranty applies for Automotive and Commercial Fleet use, all other applications a 2 Year Warranty period applies).
