BOOST MODE | LOW OUTPUT / E-MARK MODE |
|---|
| |
| Voltage Range (DC) | 10-32V |
| LED Life | 50,000 hours |
| Weight | 0.68 kg |
| |
| HIGH BEAM FUNCTION |
| Total Luminous Flux | 11,500 Lm | 4,025 Lm |
| Total Driver 'FOV' Flux † | 6,958 Lm | 2,435 Lm |
| Colour Temperature | 5000K |
| Power Consumption | 120 Watts | 42 Watts |
| Peak Current Draw | 9.6 Amps | 2.6 Amps |
| Current Draw (14.4V) | 8.3 Amps | 2.3 Amps |
| Connector | 3-Pin Superseal (+25cm Cable) |
| |
| DIMENSIONS |
| Width | 517 mm |
| Depth | 71 mm |
| Height | 39 mm |
| |
| CERTIFICATION |
| IP Rating # | IP68 |
| High Beam (E9 approval) | ECE R149 (Double E-Mark) - Ref: 2x 12.5 (Low Output mode only) |
| Position Light (white) | ECE R148 |
| EMC Certification | ECE R10 |
| Salt Spray Test | ISO 9227 |
| Dump Load Protection | ISO 7637-2 |
| |
| PHOTOMETRIC DATA |

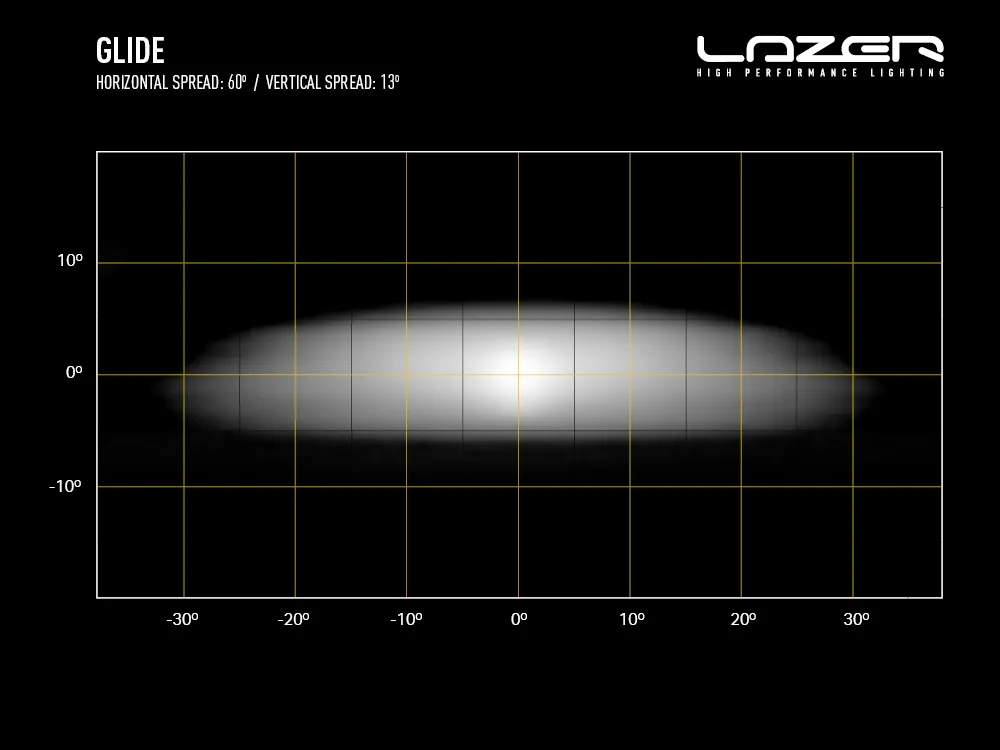

| Horizontal / Vertical Beam Angle | 60° / 13° |
| 0.25 lx Line | 1095m | 648m |
| 0.5 lx Line | 775m | 458m |
| 1 lx Line | 548m | 324m |
| 3 lx Line | 316m | 187m |
| |
† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.
# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

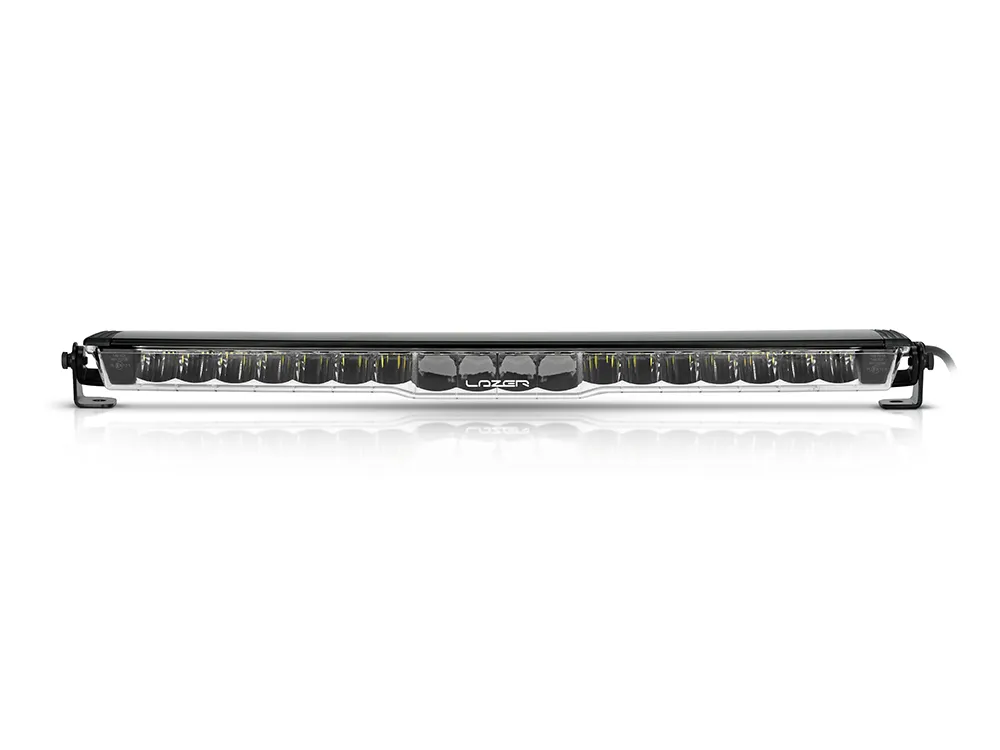

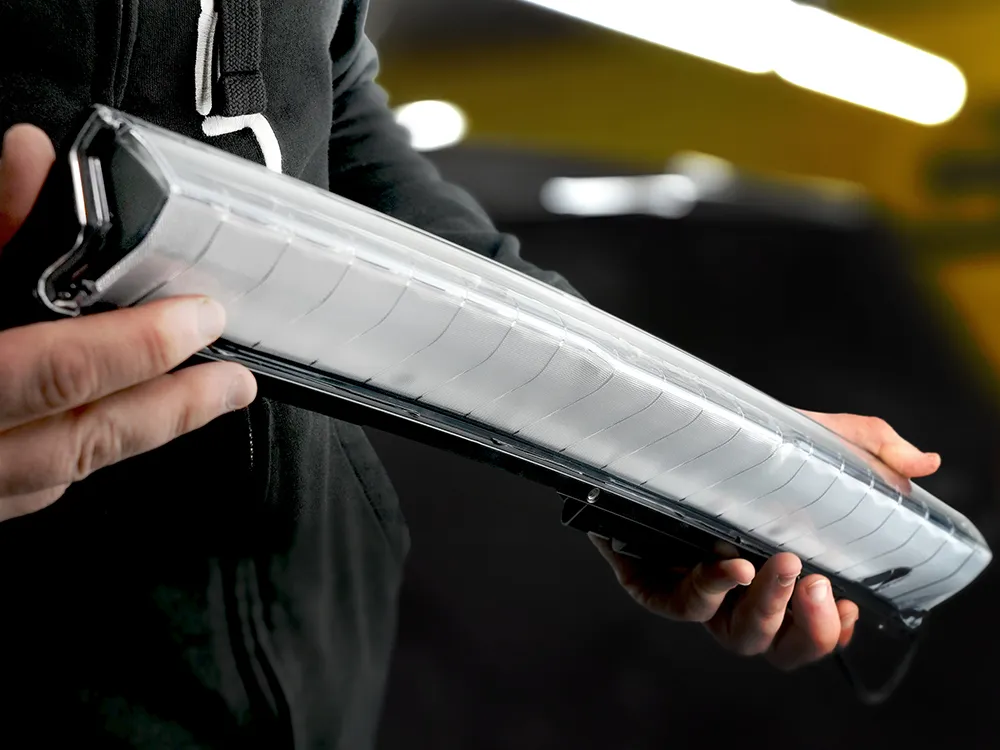

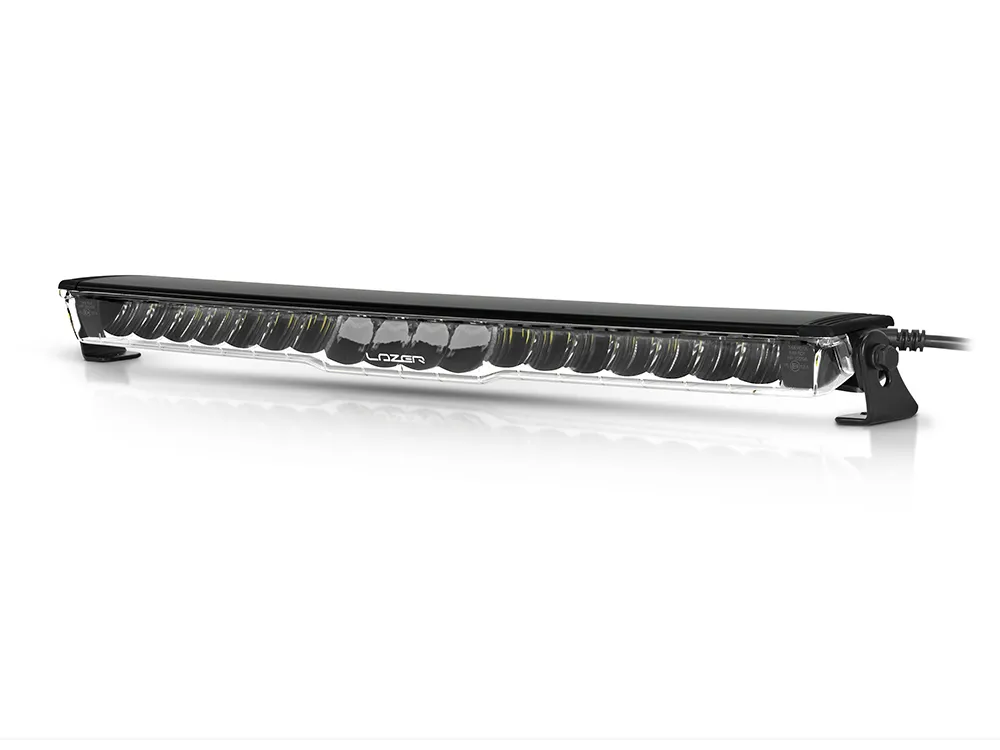

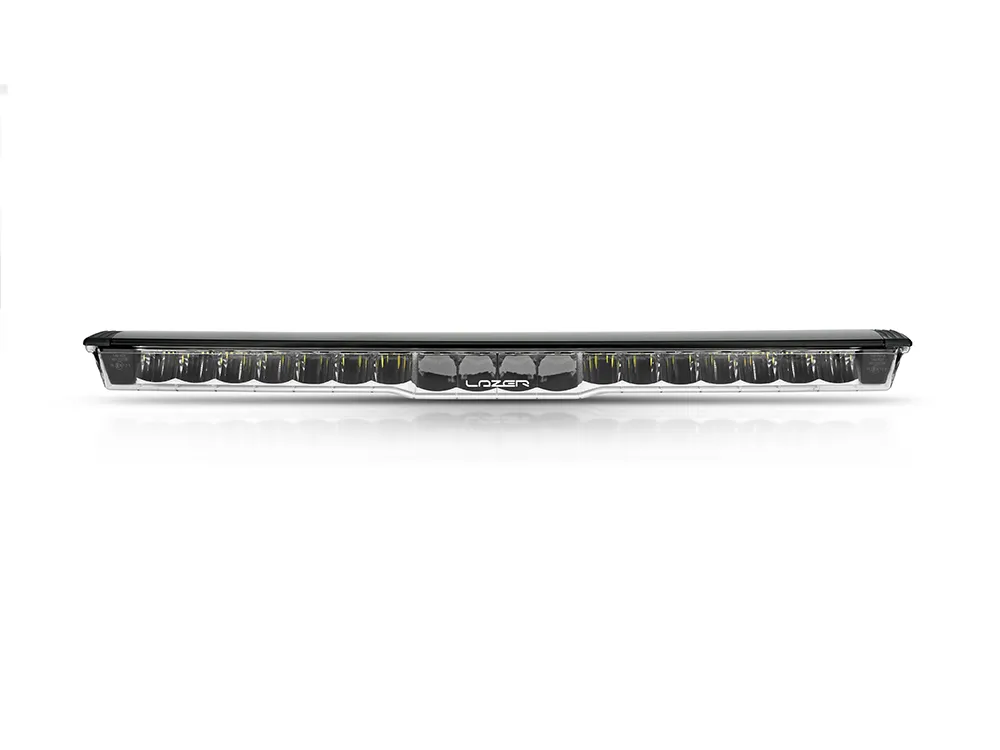

Introducing Glide, the world’s first ‘formed’ LED light bar. Featuring a monocoque lens construction for highly weight-efficient inherent strength and robustness, Glide is a range of 20” curved light bars that deliver so much especially when considering their ultra low-profile design. The enviable balance of exceptional lighting performance and OE quality aesthetics, sympathetic to the front contours of a diverse number of vehicle types, makes, and models, make Glide an exceptional choice particularly within the passenger car and light commercial sectors.

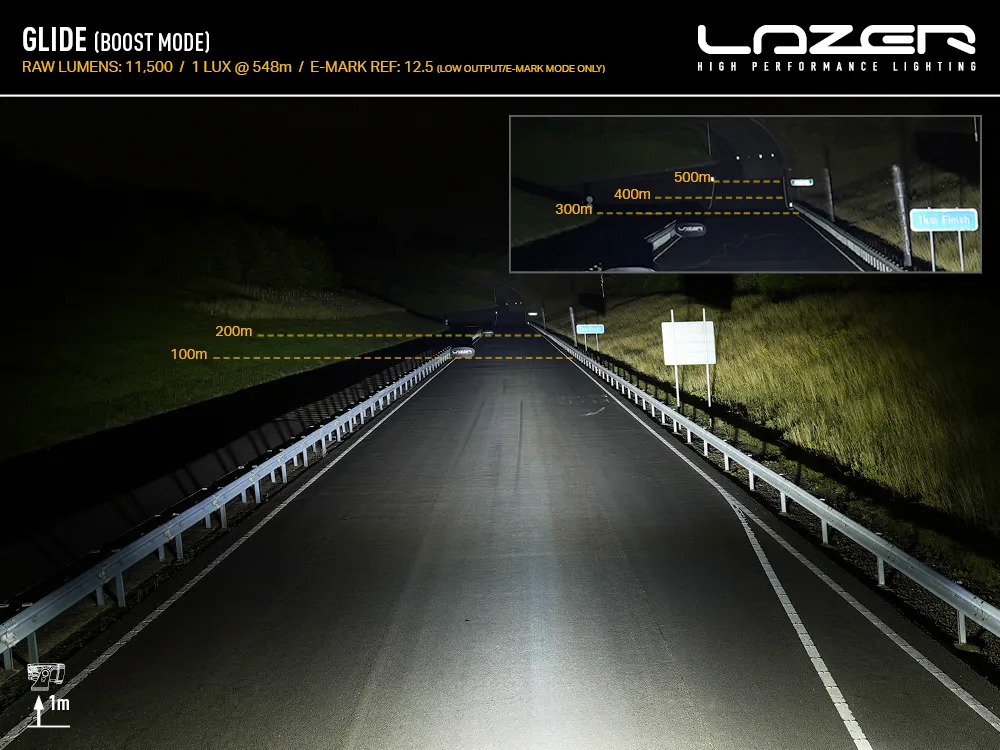

The ’standard’ Glide products represent incredible value considering their design, performance, and build quality. At their core, 18x premium bin LEDs working in unison with the vacuum-metallised optic system to distribute 11,500 raw lumens with strong distance illumination (1 lux @ 548m) and a 60 degree horizontal spread of light.
In-built within each Glide lamp is a Dynamic Dip mode which provides a smooth transition between high and low output modes. The low output mode permits driving in compliance with UNECE Regulation 149 (Double E-Mark) where local laws require, and/or a reduced output which for example reduces glare from highly reflective surfaces such as large road signs. The Dynamic Dip function is activated after the light has been on for >2seconds by simply and quickly flashing the light off and on again.

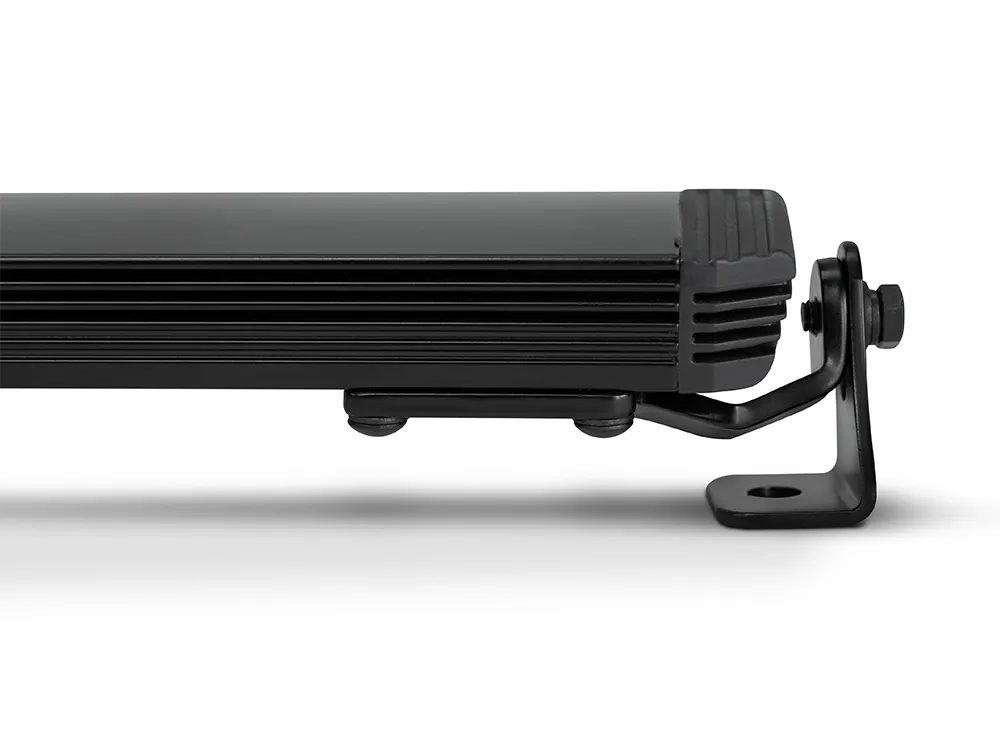

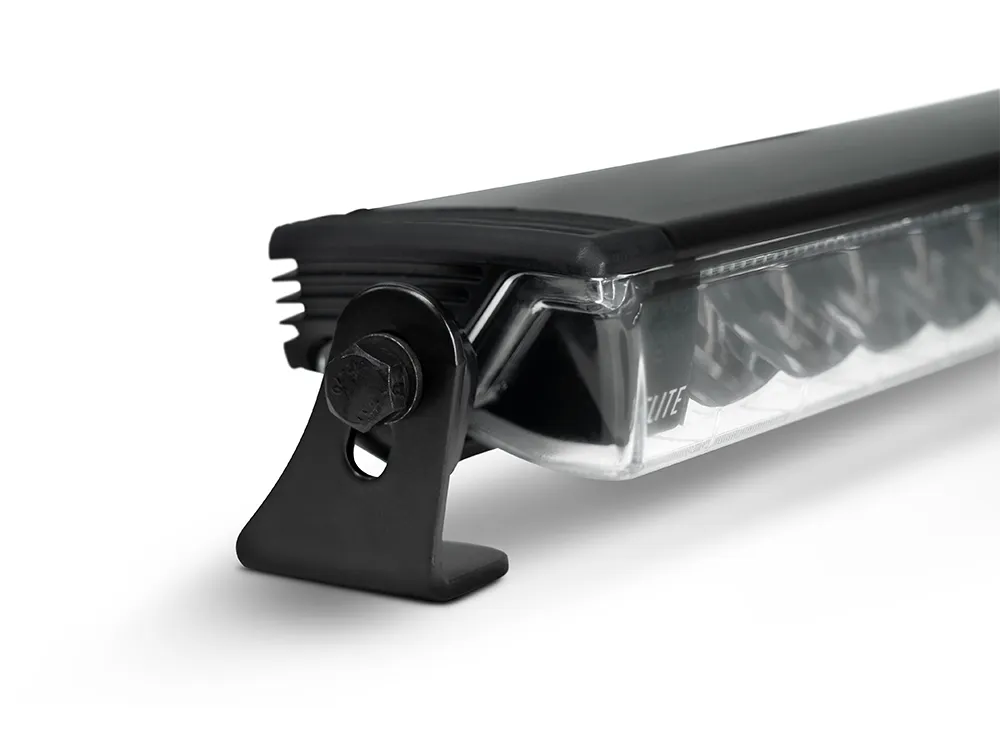

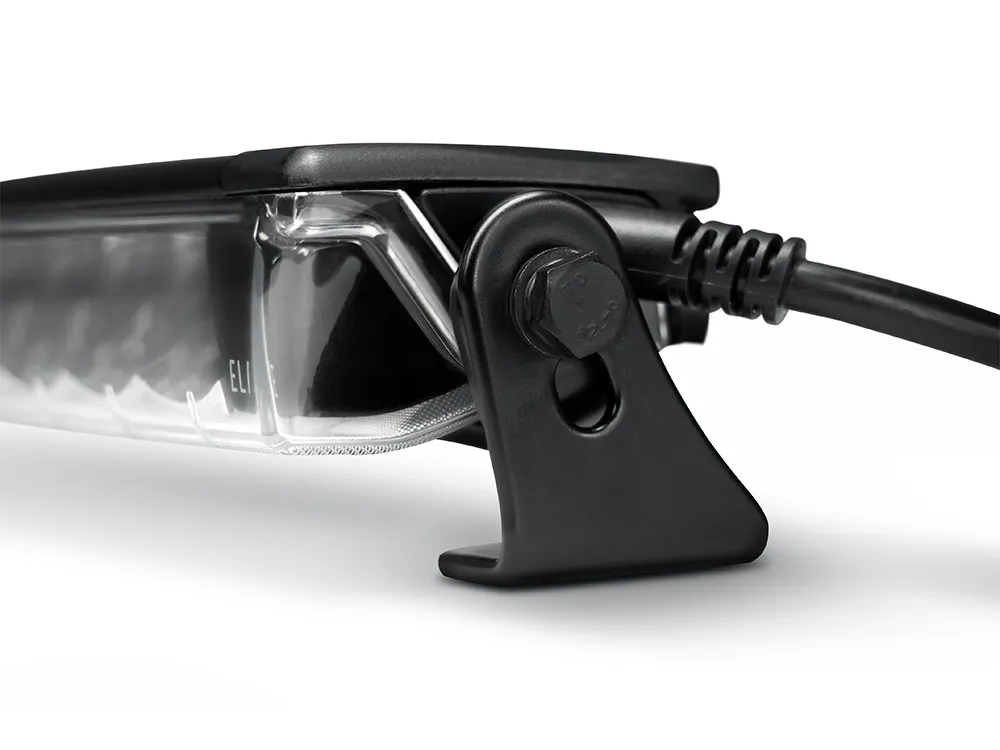

Unlock both style and safety with Glide LED lightbars, which offer an integrated white position light, fully approved for on-road use under UNECE Reg 148 regulations. Each lamp comes equipped with a side mounting kit, while additional mounting options are available to customize your setup—choose from a number plate mount or for added peace of mind, an anti-theft side mounting kit. For underside number plate installations, the side mounting kit should be used in conjunction with our universal number plate mount kit (sold separately).
The Glide range of low-profile formed light bars, like all Lazer LED lighting solutions, are designed and manufactured against unparalleled standards and packed full of advanced and innovative features to maximise performance and longevity. With Glide you can be fully assured of exceptional high-end product design, coupled with superior levels of illumination, all backed by our comprehensive 5-year warranty.
