Lazer Sentinel 9'' Highline Beacon

† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

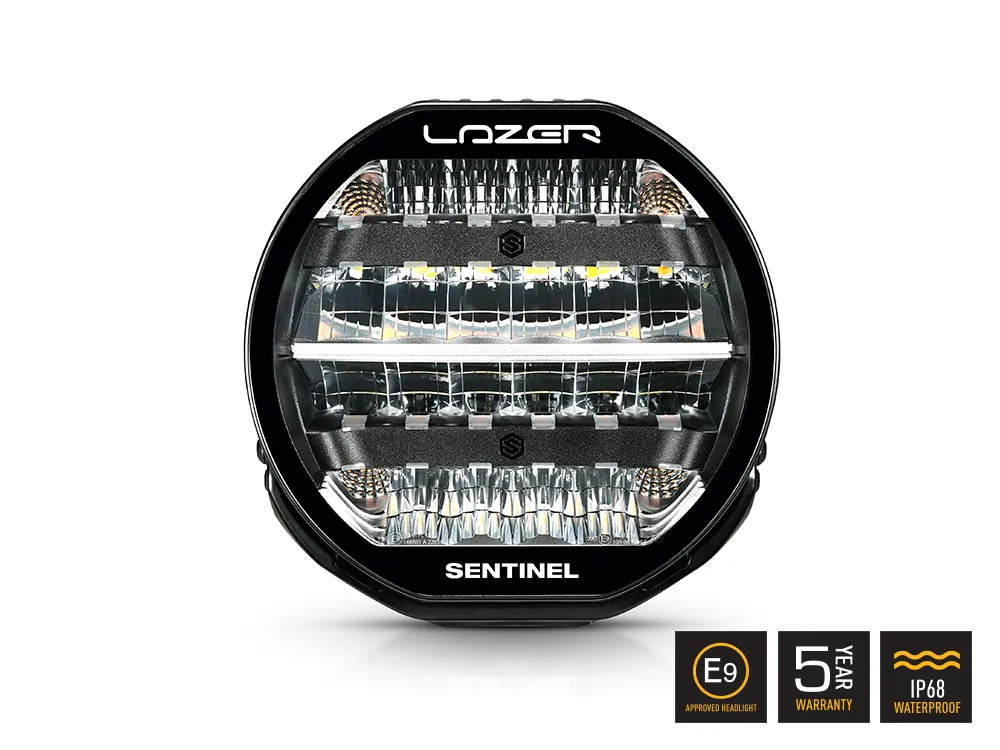

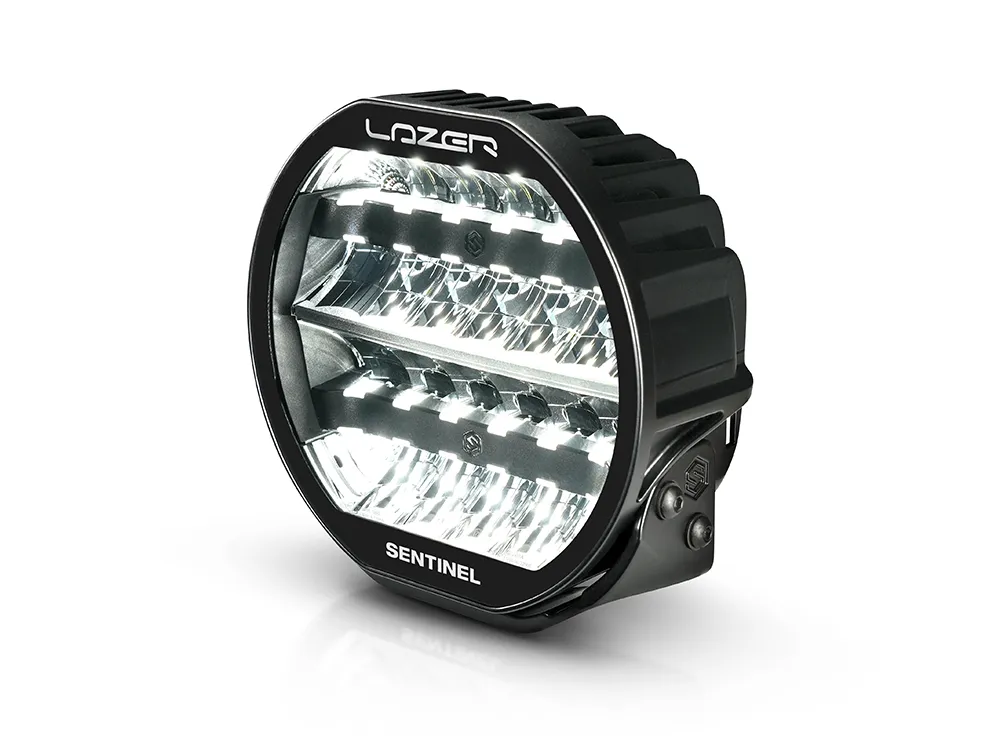

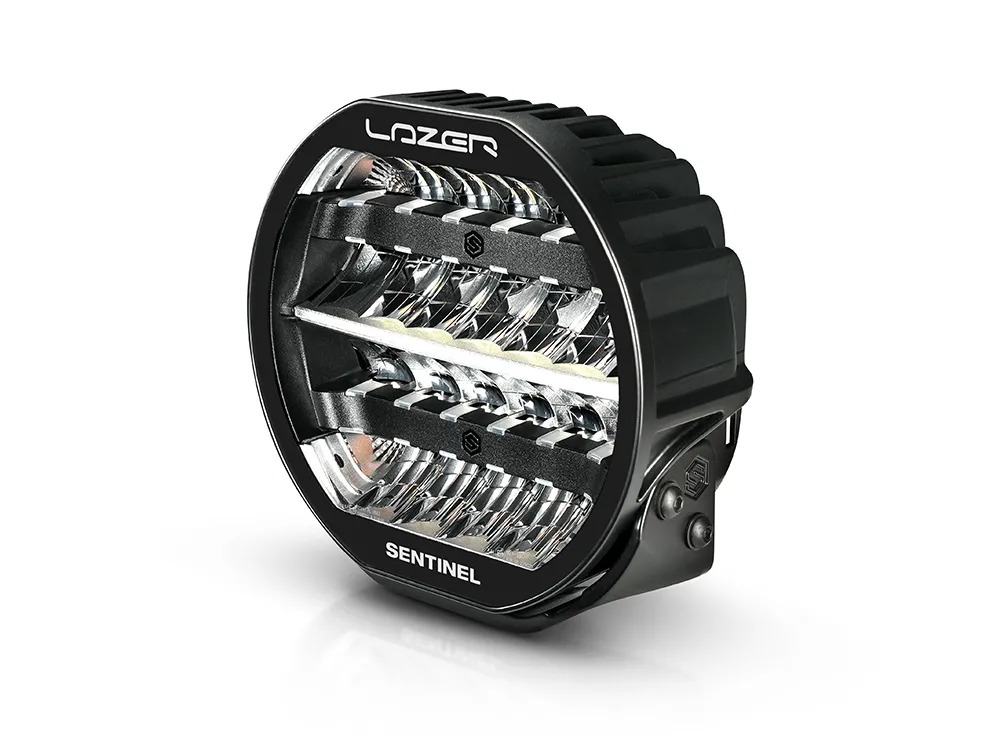

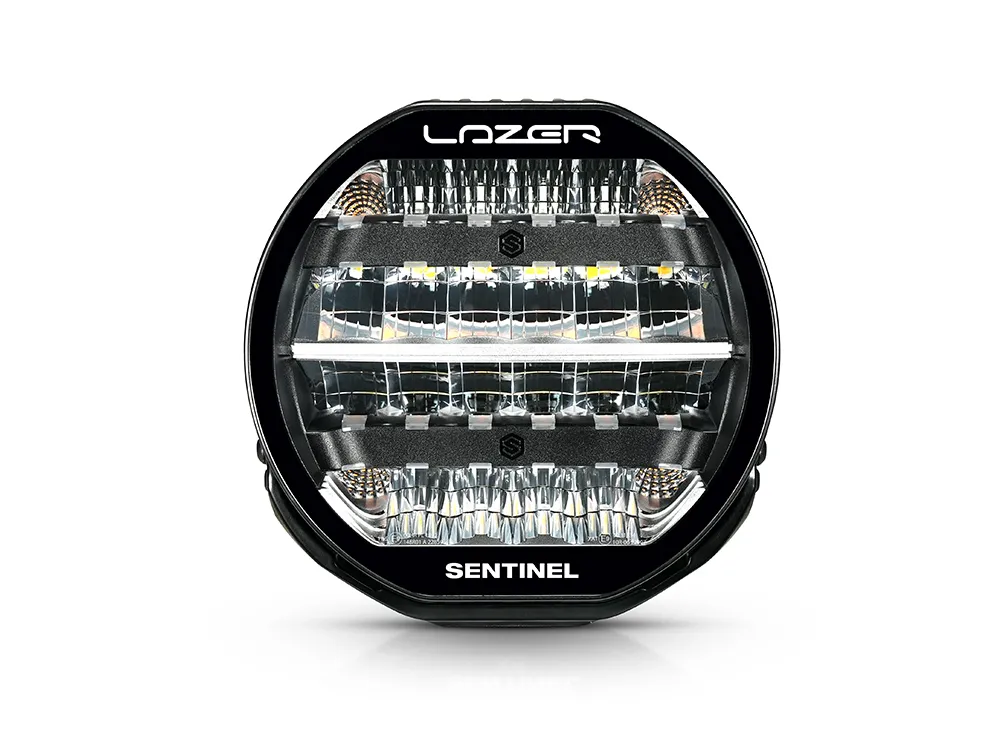

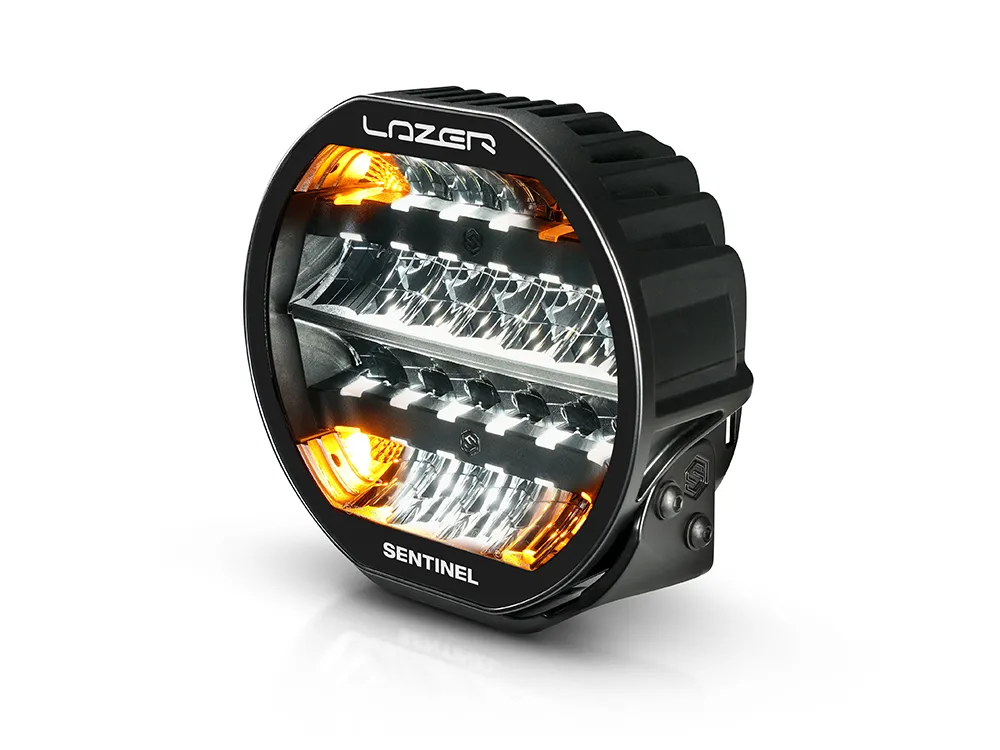

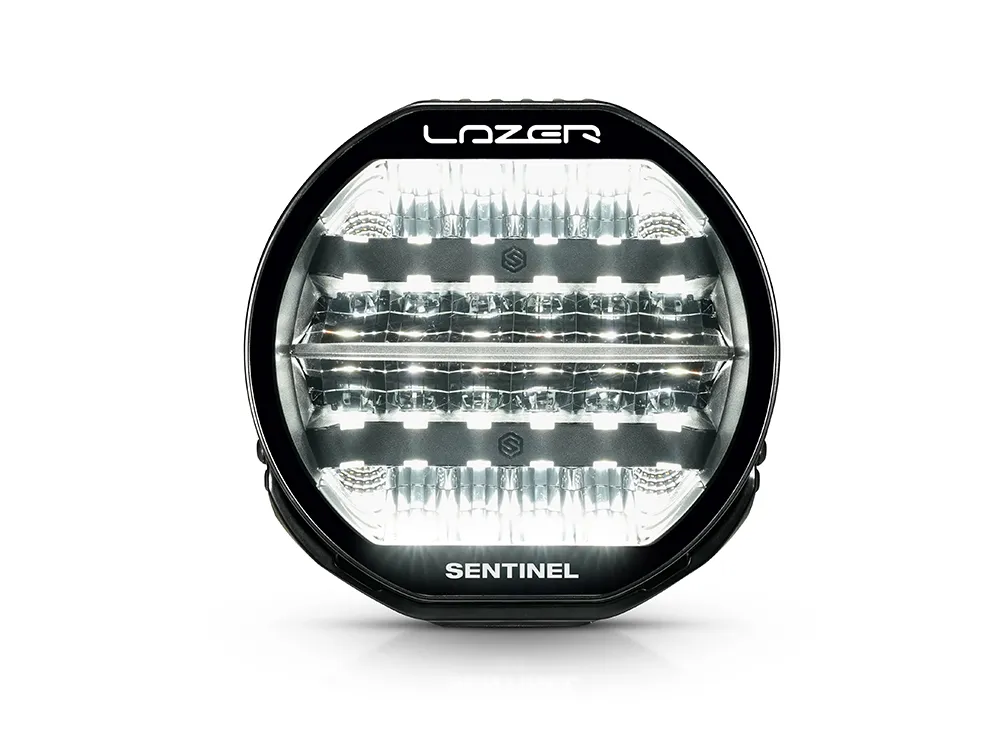

The latest addition to the Sentinel range of 9” round lamps, the Highline 'Gen2' product range comprises lamps primarily aimed at the heavy truck sector. Distinctive high-end product design with a sleek black internal appearance, and the combination of 20 high power LEDs delivers exceptional lighting performance optimised for commercial applications. The appeal of the lamps is enhanced courtesy of an updated position light / backlight feature for 2025, and integrated Beacon function, along with the possibility to activate a dynamic welcome mode, and choice of lamp finish in satin black or gloss white, ensures Sentinel Highline are products that stand out for all the right reasons.

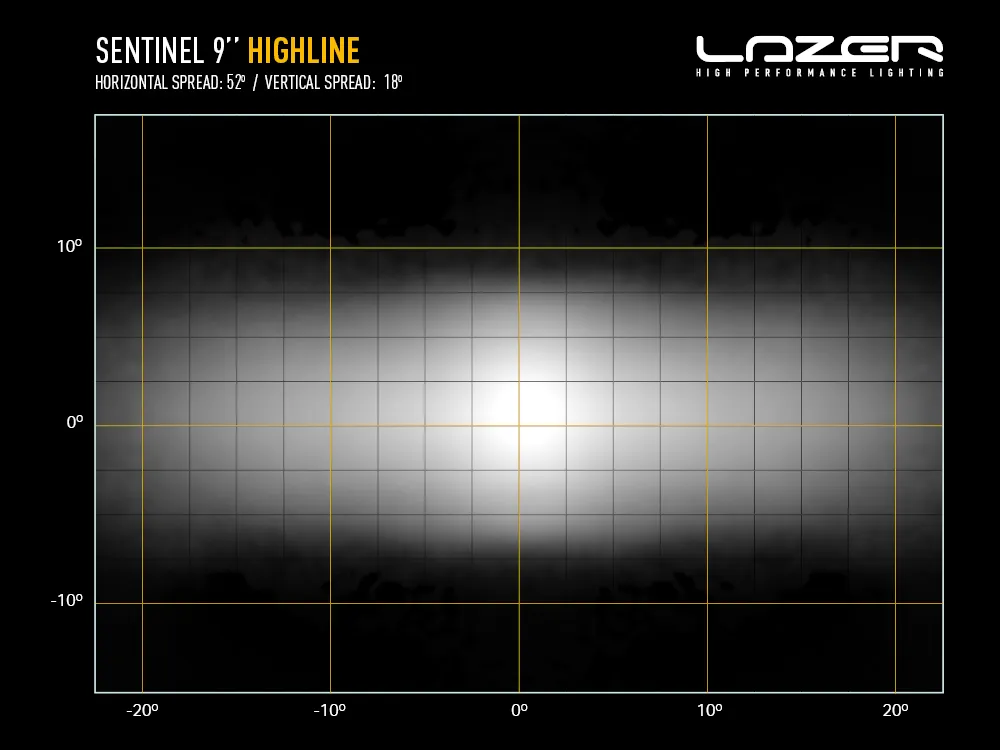

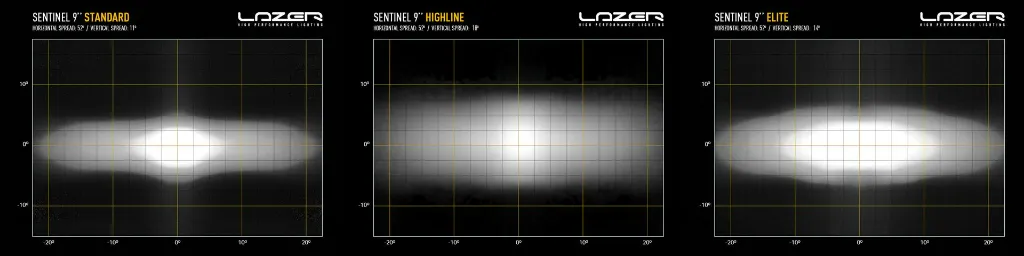

Emitting 17,020 raw lumens, the lamps deliver 1 lux to 583m, with a comfortable 52 degree horizontal spread of light, and 18 degree vertical spread of light, tailored to everyday road use, particularly when mounted higher on a truck cab for example. Like all Lazer products, the colour temperature at a pleasant 5000K is easy on the eye, while maximising sharpness and definition of objects ahead. The lamp is UNECE approved to Regulation 149 as a high beam driving light, through adoption of Lazer’s dual output Boost technology; controlled via quickly flashing the light off/on, the light can be quickly dimmed for avoiding glare when passing road-signs for example (flash-to-dim), or at any time programmed to always work in the high or low output modes, with the low output mode complying to the UNECE Reg149 as an on-road high beam driving light.

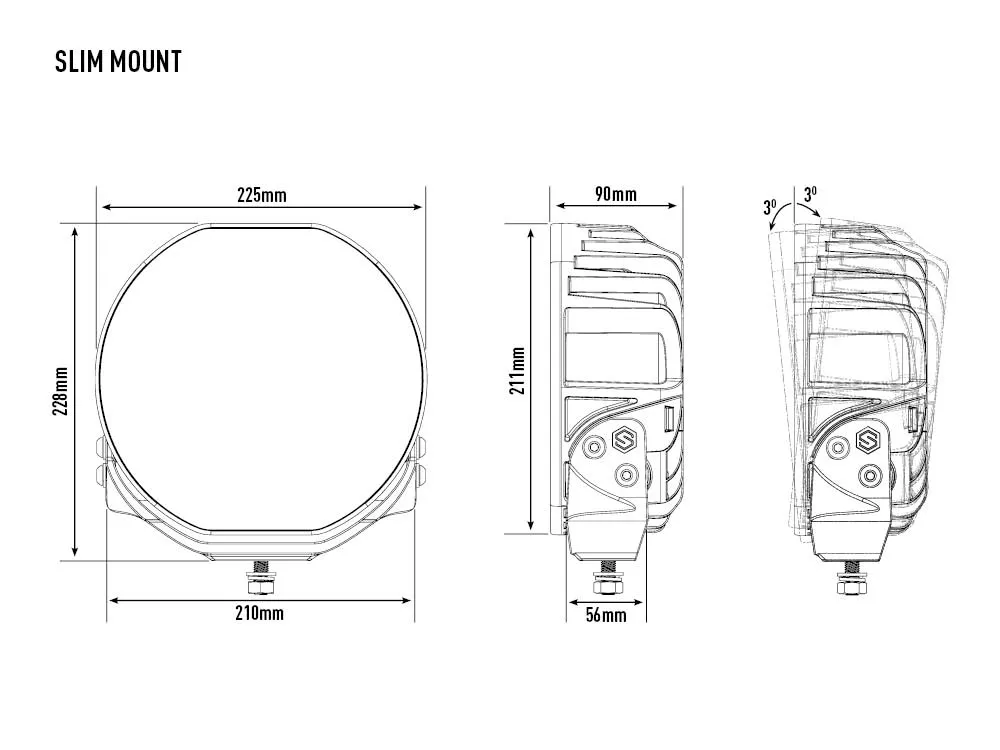

The stealth design of the Sentinel lamp is achieved through the adoption of black printed circuit boards, and black bezel feature with intricate design detail for a unique, contemporary appearance. The aesthetic appeal of the lamp is furthered through the ‘slim’ diecast aluminium mounting bracket, with Sentinel stamp, which like the lamps themselves has an automotive-grade pre-treatment before being powder coated satin black. The result is a premium finish on the product that is fully protected against aesthetic deterioration or corrosion. A range of: lens covers, stay bar kit, and anti-theft fasteners, are available as optional accessories.

For customers looking for a dynamic start-up or welcome mode, when starting your vehicle or turning on your side/position lights, the Sentinel ‘Gen2’ products can be activated to either gradually brighten at start-up, or gradually brighten while cycling between the white and amber colours (or vice versa).

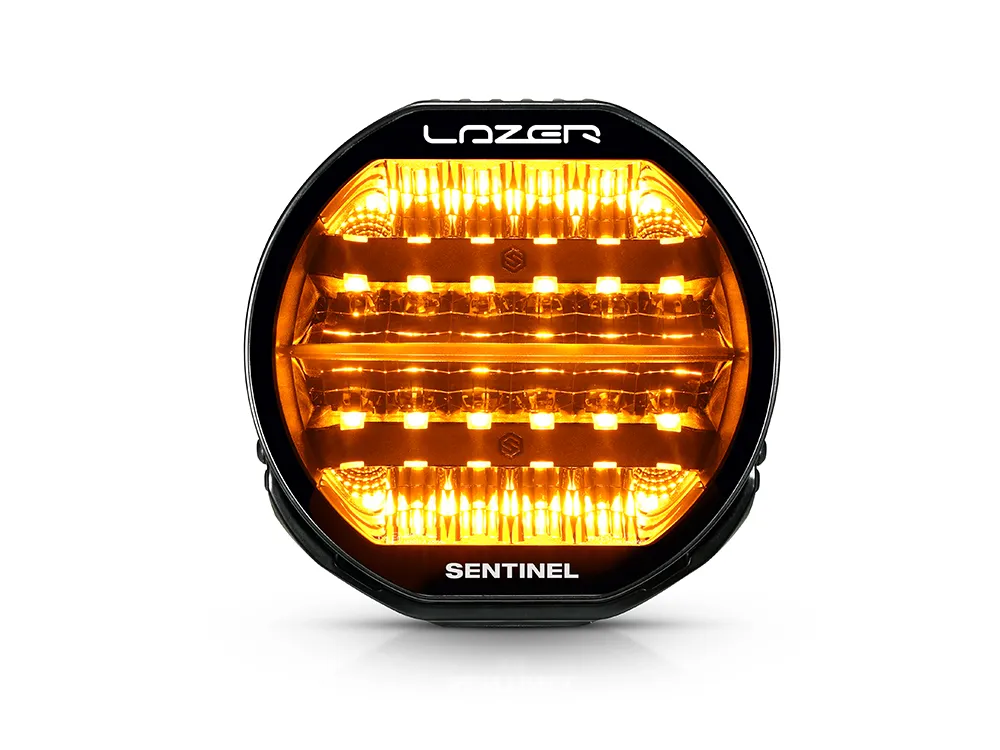

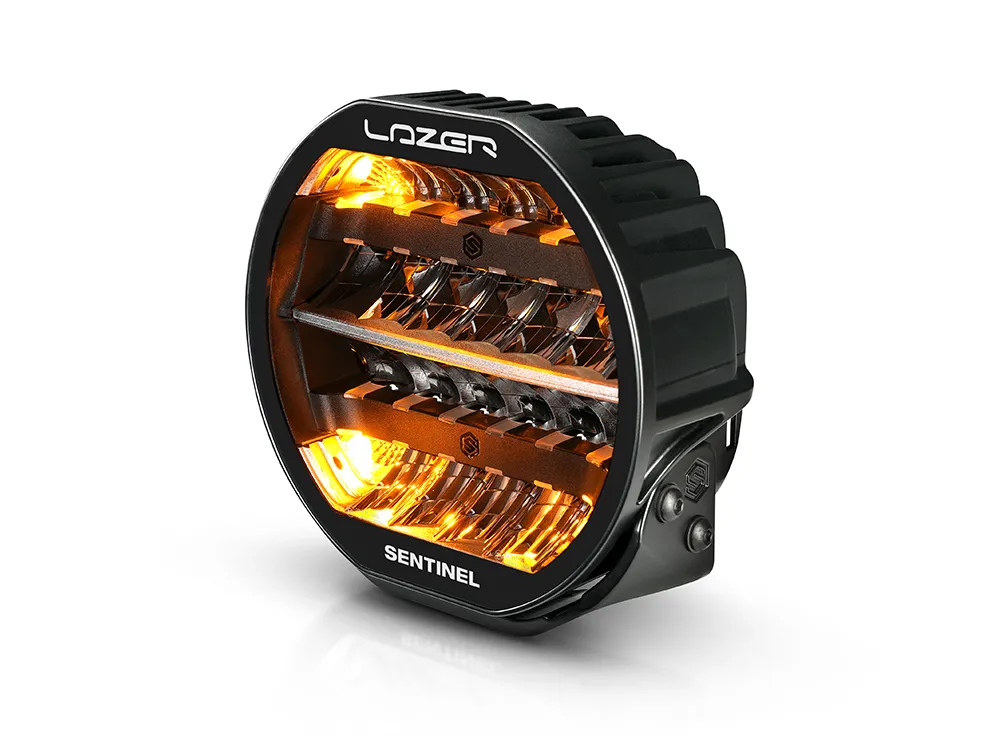

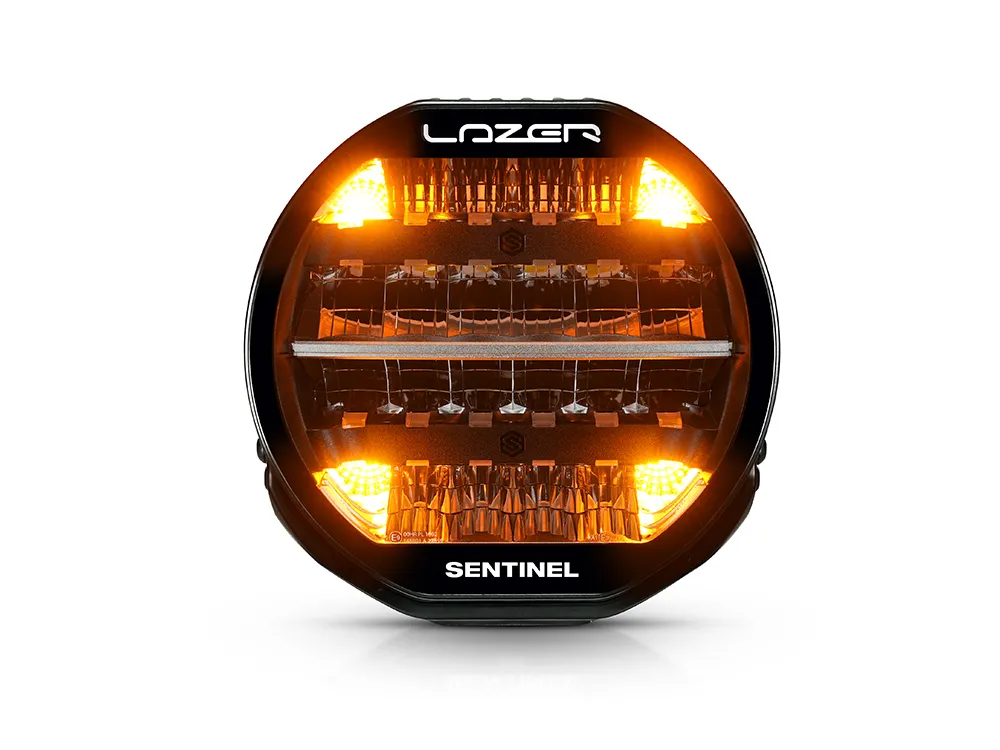

The innovative Beacon function illuminates the lamp's corners in amber, serving as a Regulation 65-approved (XA1) narrow-field special warning light. Offering two distinct amber warning patterns, the function allows for seamless selection and synchronization across multiple lamps—either during installation or via a momentary switch, enabling on-demand flash pattern changes to suit varying operational needs.

As with all Lazer products, the Sentinel lamps have been designed, engineered, and are manufactured in-house, in the UK. There is no compromise in regards component parts, or build processes to achieve a superior product, while simultaneously ensuring that more than ever, environmental stewardship and an ambitious carbon-reduction program have also featured heavily in the Sentinel products design and build.
